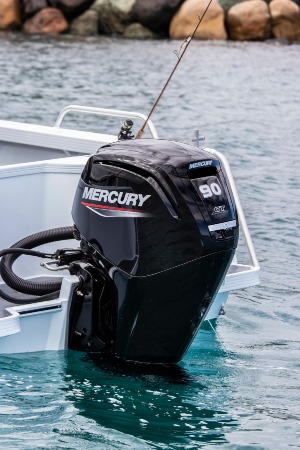

Mercury 90 HP ELPT CT
90hp_GC_SL_1
Mercury 90 HP ELPT CT
90hp_GC_SL_1

Mercury 90 HP ELPT CT

Mercury 90 HP ELPT CT

$18,500.00
* Buy now
Details Specifications Features & Options
  • Make: MERCURY
  • Year: NEW
  • SKU/Model Number: Mercury 90 HP ELPT CT
  • Name: Mercury 90 HP ELPT CT
  • Condition: New
  • Warranty: Valid

ENGINE DETAILS

Can lift a heavy boat onto plane more easily and hold it there at lower speeds without impacting top speed. Ideal for tritons, pontoons, aluminum tillers, aluminum consoles, offshore fishing, commercial workboats, deck boats, and fish & ski.

SPECIFICATIONS - 90HP FOURSTROKE COMMAND THRUST

HP / kW
  • 90 / 67
Engine type
  • 8-valve single overhead cam (SOHC)
  • Inline 4
Displacement (L)
  • 2.1
Full throttle RPM
  • 5000-6000
Air induction
  • Performance-Tuned Scroll Intake Manifold
Fuel induction system
  • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt
  • 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel
  • Unleaded 91 RON Minimum
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • SmartCraft Engine Guardian
Compatible with SmartCraft digital technology
  • Yes
Starting
  • Smart Start Electric
Controls
  • Mechanical throttle & shift
Steering
  • Big Tiller Compatible
  • Dual cable mechanical
  • Hydraulic power steering
Shaft length
  • 20" / 508 mm
  • 25" / 635 mm
Gearcase ratio
  • 2.38:1
Dry weight *Lightest model available
  • 363 lbs / 165 kg
Emissions Star Rating
  • 3
Bore and stroke
  • 3.5 x 3.2" / 90 x 81 mm
Ignition
  • SmartCraft ECM 70 Digital Inductive
Fuel system
  • Electronic Fuel Injection (EFI)
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Command Thrust
Trim system
  • Power Tilt
  • Power Trim
Exhaust system
  • Through prop
Shallow water trim range (degrees)
  • 20
Color
  • Phantom Black
Lubrication system
  • Wet sump
Oil Capacity
  • 5.5 qts / 5.2 l
Maximum Trim Range
  • 22° (-6° to 16°)
Maximum Tilt Range
  • 70° (-6° to 64°)

All fitted with Alloy prop and Smartcraft Tacho.
